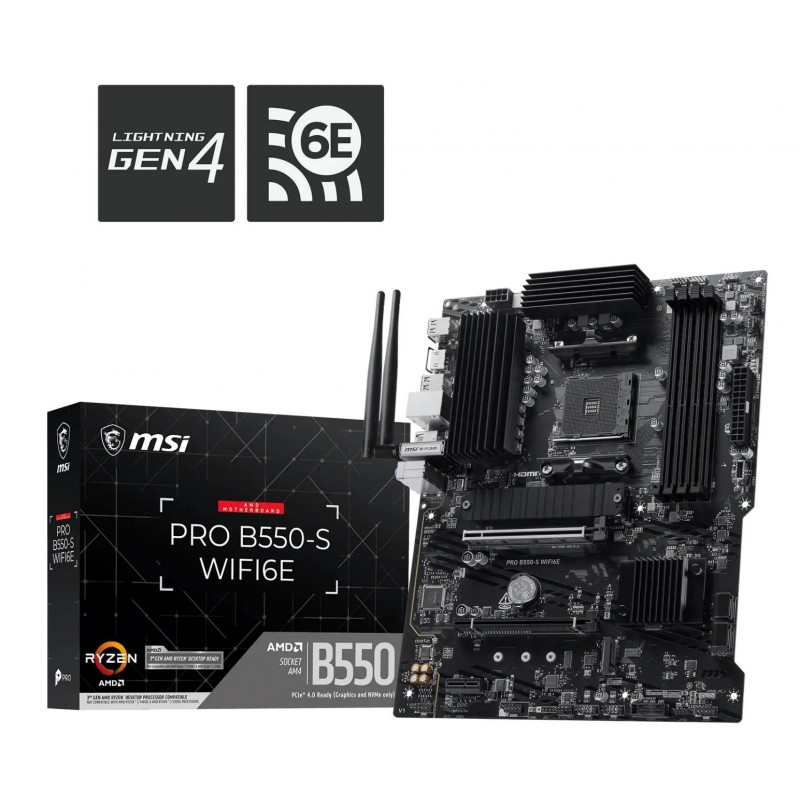

MSI PRO B550-S WIFI6E/AM4/ATX

MSI PRO B550-S WIFI6E

Chipset: AMD B550
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors
Patice procesoru: AM4

Paměť:


*4x DDR4, Maximum Memory Capacity 128GB
*Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
*Max. overclocking:
*1DPC 1R Max speed up to 4800+ MT/s
*1DPC 2R Max speed up to 3866+ MT/s
*2DPC 1R Max speed up to 4000+ MT/s
*2DPC 2R Max speed up to 3600+ MT/s
*Supports JEDEC Speed
*Supports Dual-Channel mode
*Supports non-ECC, un-buffered memory
*Supports Memory Overclocking by A-XMP OC mode

Grafické porty:

1x HDMI


*Support HDMITM 1.4, maximum resolution of 4K 30Hz

Zvuková karta:


*Realtek ALC897 Codec
*7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8111H 1Gbps LAN
WLAN + Bluetooth: Wi-Fi 6E


*The Wireless module is pre-installed in the M.2 (Key-E) slot
*Dual-band 1T1R mode
*Supports MU-MIMO RX
*Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
*Supports 802.11 a/ b/ g/ n/ ac/ ax
*Supports Bluetooth® 5.3

Rozšiřující sloty:

2x PCI-E x16 slot

1x PCI-E x1 slot


*PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
*PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
*PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:
2x M.2


*M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
*M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

4x SATA 6G

USB:
Zadní USB


*4x USB 2.0
*2x USB 5Gbps Type A
*1x USB 10Gbps Type A
*1x USB 10Gbps Type C

Přední USB


*4x USB 2.0
*2x USB 5Gbps Type A
*1x USB 5Gbps Type C

Interní porty:


Napájení


*1× Power Connector (ATX_PWR)
*1× Power Connector (CPU_PWR)
*1× CPU Fan
*1× Combo Fan (Pump_Sys Fan)
*4× System Fan

USB


*4× USB 2.0 ports
*2× USB 5Gbps Type-A ports
*1× USB 5Gbps Type-C port

Ostatní


*2× Front Panel (JFP)
*1× Chassis Intrusion (JCI)
*1× Front Audio (JAUD)
*1× COM Port (JCOM)
*2× Addressable V2 RGB LED connectors (JARGB_V2)
*1× RGB LED connector (JRGB)
*1× TPM pin header (TPM 2.0)

Porty na zadním panelu:


*USB 2.0
*HDMI
*USB 2.0
*LAN Port
*USB 10Gbps Type-A
*Wi-Fi / Bluetooth
*Audio connectors
*USB 5Gbps Type-A
*USB 10Gbps Type-C

OS: Windows 11 64-bit, Windows 10 64-bit
